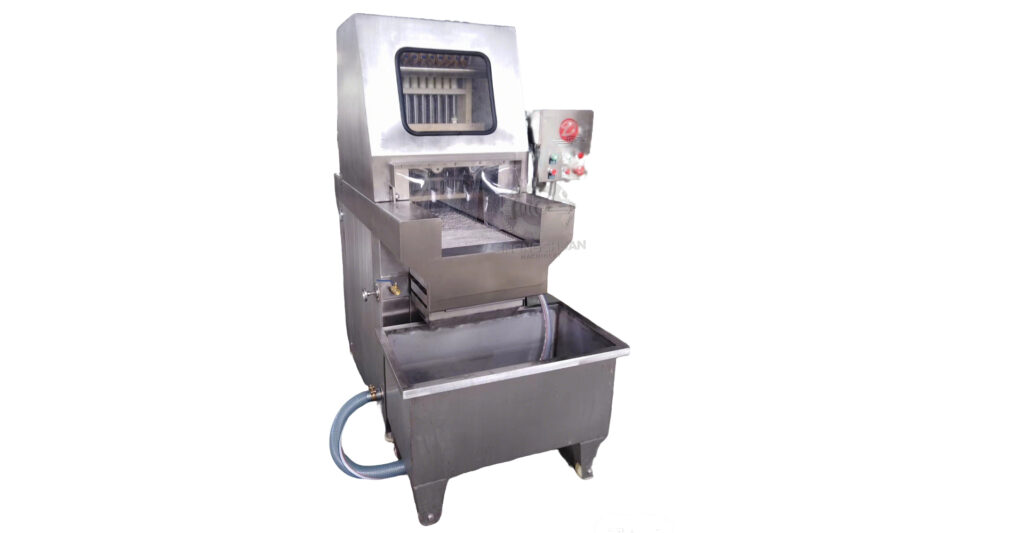

Why Choose Our Industrial Brine Injector?
Unlike manual marination or low-capacity injectors, our industrial-grade equipment is built to withstand the rigors of continuous, high-volume production while maintaining unparalleled precision. Whether you’re processing beef, pork, poultry, fish, or deli meats, our brine injector ensures that brine, marinade, curing solution, or flavor enhancers penetrate deeply and evenly into every piece—eliminating uneven seasoning, reducing waste, and boosting your bottom line. Backed by advanced technology and robust construction, it’s the reliable solution for industrial meat processors worldwide.
Core Features & Technical Advantages
1. High-Precision Multi-Needle Injection System
At the heart of our Industrial Brine Injector is a high-density multi-needle design (available in 48, 80, 120 needles, customizable to your needs) that ensures uniform brine distribution across every cut of meat. The 2mm precision needles—stronger than traditional stainless steel—flex and recover to avoid bending or breaking, even when processing bone-in meats thanks to the intelligent bone detection system. Each needle is equipped with a one-way valve that prevents brine backflow during retraction, ensuring every injection is precise and efficient, with no unsightly needle marks on the final product.
2. Fully Automatic & User-Friendly Operation
Designed for minimal human intervention, our industrial brine injector features a digital touchscreen control panel that allows operators to adjust injection pressure (0.1~0.5MPa), speed, and brine dosage with ease. The automatic conveyor system moves meat through the injection zone at a consistent pace, while the adjustable needle depth (10~150mm) accommodates different meat sizes and thicknesses—from chicken wings to large beef cuts. Recipe storage functionality lets you save and recall custom settings for different products, reducing setup time and ensuring consistency batch after batch.
3. Food-Grade Stainless Steel Construction
Built to meet global food safety standards (CE, FDA certified), the entire machine is constructed with 304 stainless steel—resistant to corrosion, easy to clean, and free from harmful contaminants. The smooth, seamless surfaces and removable conveyor belt allow for quick sanitization, while the automatic needle cleaning system (featuring cold water, hot water, ultrasonic vibration, high-pressure air, and UV treatment) prevents cross-contamination and ensures needles are ready for each shift. This design not only safeguards food safety but also extends the machine’s lifespan in harsh industrial environments.
4. Efficient Brine Circulation & Cost-Saving Design
Our Industrial Brine Injector is equipped with a high-pressure pump that delivers brine from the built-in storage tank to the needles, with a filtration system that removes impurities and allows excess brine to be recycled—reducing brine waste by up to 30% compared to traditional injectors. The energy-saving motor and optimized hydraulic system minimize power consumption, while the modular design allows for quick needle cassette changes (in 7-9 minutes, no tools required) to switch between product types without downtime.
5. Versatile Application & Seamless Integration
This machine is highly versatile, capable of injecting brine, marinade, starch, soy protein, or curing solutions into a wide range of meat products, including ham, bacon, poultry, fish, corned beef, pepperoni, and marinated chicken wings. Its compact design and customizable conveyor width make it easy to integrate into existing meat processing lines, while compatibility with upstream brine chilling systems and downstream tumbling equipment ensures a seamless production workflow. It supports high-speed operations (up to 50 strokes per minute) to keep up with your facility’s production demands.
Applications Across the Meat Processing Industry
Our Industrial Brine Injector is the ideal solution for any large-scale meat processing operation, including:
- Meat packing factories (beef, pork, lamb processing)
- Poultry processing plants (chicken, turkey, duck)
- Sausage and deli meat production facilities
- Smoked meat and ham production lines
- Seafood processing (fish, shrimp brining)
- Frozen food factories (marinated meat products)
Whether you’re looking to enhance the flavor of your products, improve tenderness, extend shelf life, or increase production efficiency, our Industrial Brine Injector delivers consistent, reliable results—batch after batch.
