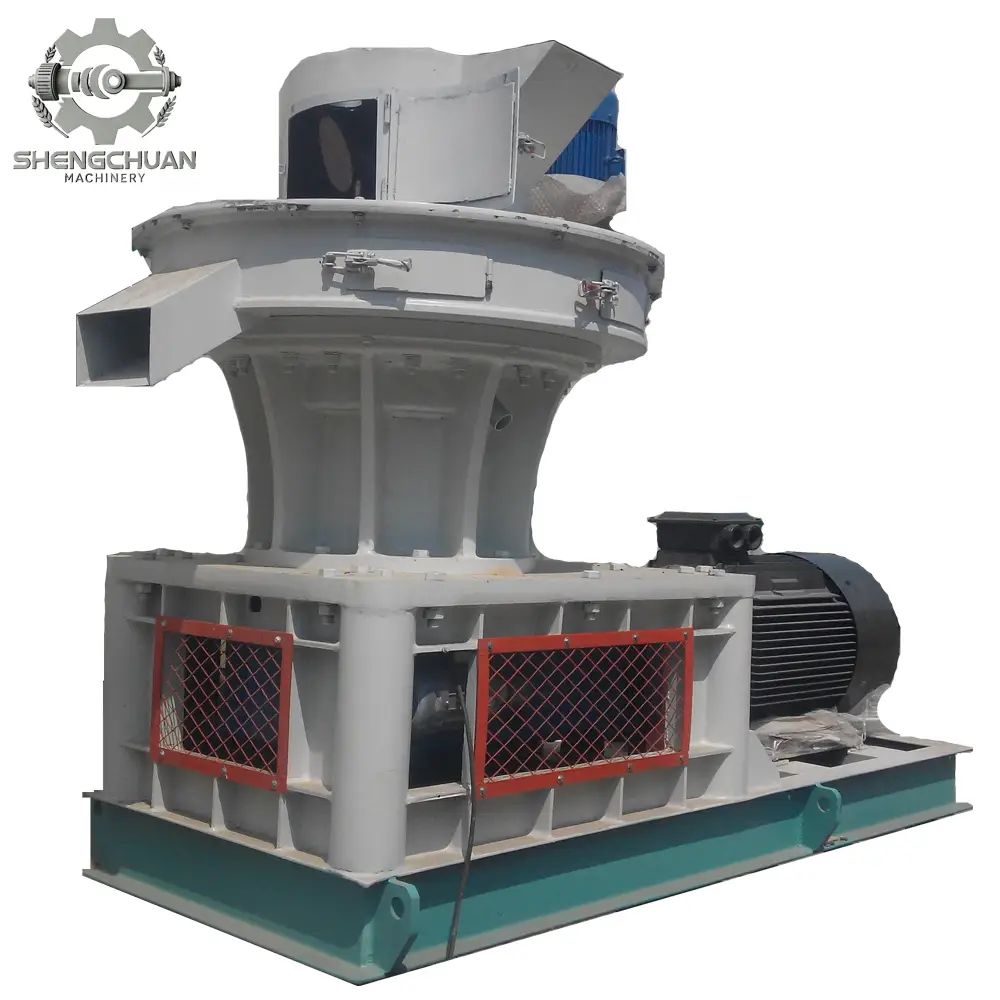

Our vertical ring die wood pellet machine is a high-efficiency, durable solution for converting various biomass raw materials into high-quality fuel pellets. Designed with a vertical structure and a ring die, this series offers enhanced stability, uniform pellet formation, and low maintenance requirements. It is ideal for processing wood chips, sawdust, agricultural waste, and other biomass materials into pellets for heating, power generation, and industrial use.
Technical Specifications
| Type | Main Power (kW) | Oil Pump (kW) | Automatic Oiling System (kW) | Kick-out Device (kW) | Feeder Power (kW) | Capacity (T/h) | Pellet Dia (mm) | Size & Weight (mm/kg) | Remark |
|---|---|---|---|---|---|---|---|---|---|
| LS450 (58.62kW) | 55 | 0.25 | 0.37 | 1.5 | 1.5 | 0.6-0.8 | 6-8 | L:2050, W:850, H:1750; Weight: 3800kg | Mold Size 450mm |
| LS550 (93.22kW) | 90 | 0.25 | 0.37 | 1.5 | 1.5 | 1.2-1.8 | 6-8 | L:2500, W:1000, H:1830; Weight: 4500kg | Mold Size 550mm |
| LS650 (183.62kW) | 180 | 0.25 | 0.37 | 1.5 | 1.5 | 1.5-2.5 | 6-8 | L:2800, W:1200, H:1900; Weight: Customizable | Mold Size 650mm |
| LS850 (223.62kW) | 220 | 0.25 | 0.37 | 1.5 | 1.5 | 2.0-3.0 | 6-8 | L:3500, W:1700, H:2900; Weight: Customizable | Mold Size 850mm |
Key Features
- Vertical Ring Die StructureThe vertical ring die design ensures uniform pressure distribution, resulting in pellets with consistent density and smooth surfaces. It also allows for easy access to internal components, simplifying routine maintenance.
- Automatic Oiling SystemEquipped with an automatic lubrication system, the machine maintains optimal performance by continuously supplying oil to critical parts, reducing wear and extending the service life of key components.
- High Efficiency & Low Energy ConsumptionThe series features optimized power configurations, delivering high output capacities (from 0.6 to 3.0 tons per hour) while minimizing energy waste. The LS450 model, for example, operates at 55kW to achieve 0.6-0.8 tons/hour, making it highly efficient for small to medium-scale operations.
- Wide ApplicabilityCapable of processing a variety of raw materials, including wood, straw, rice husks, and more. The pellet diameter can be adjusted between 6-8mm to meet different market demands.
- Robust ConstructionBuilt with high-quality materials and precision engineering, these machines are designed for long-term use in demanding industrial environments. The heavy-duty frames (up to 4500kg for LS550) ensure stability during continuous operation.
Applications
- Residential and commercial heating pellets
- Biomass power plant fuel
- Industrial boiler fuel
- Animal feed production (with appropriate adjustments)
- Agricultural waste recycling
Why Choose Our Vertical Wood Pellet Machine?
- Customizable Options: Multiple models available to match your production scale, from small-scale (LS450) to large industrial (LS850) operations.
- Reliable After-Sales Support: Comprehensive technical support and spare parts availability to keep your production running smoothly.
- Cost-Effective Solution: Low maintenance requirements and high efficiency translate to reduced operational costs over the machine’s lifespan.
Contact us today to discuss your biomass pellet production needs and find the perfect model for your business!
